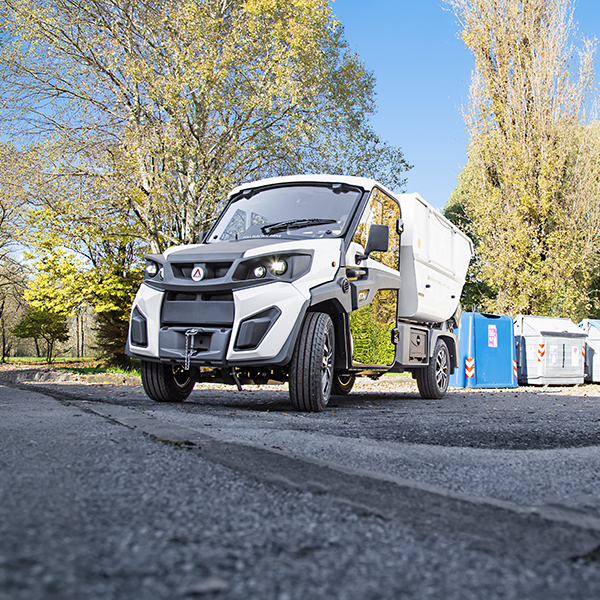

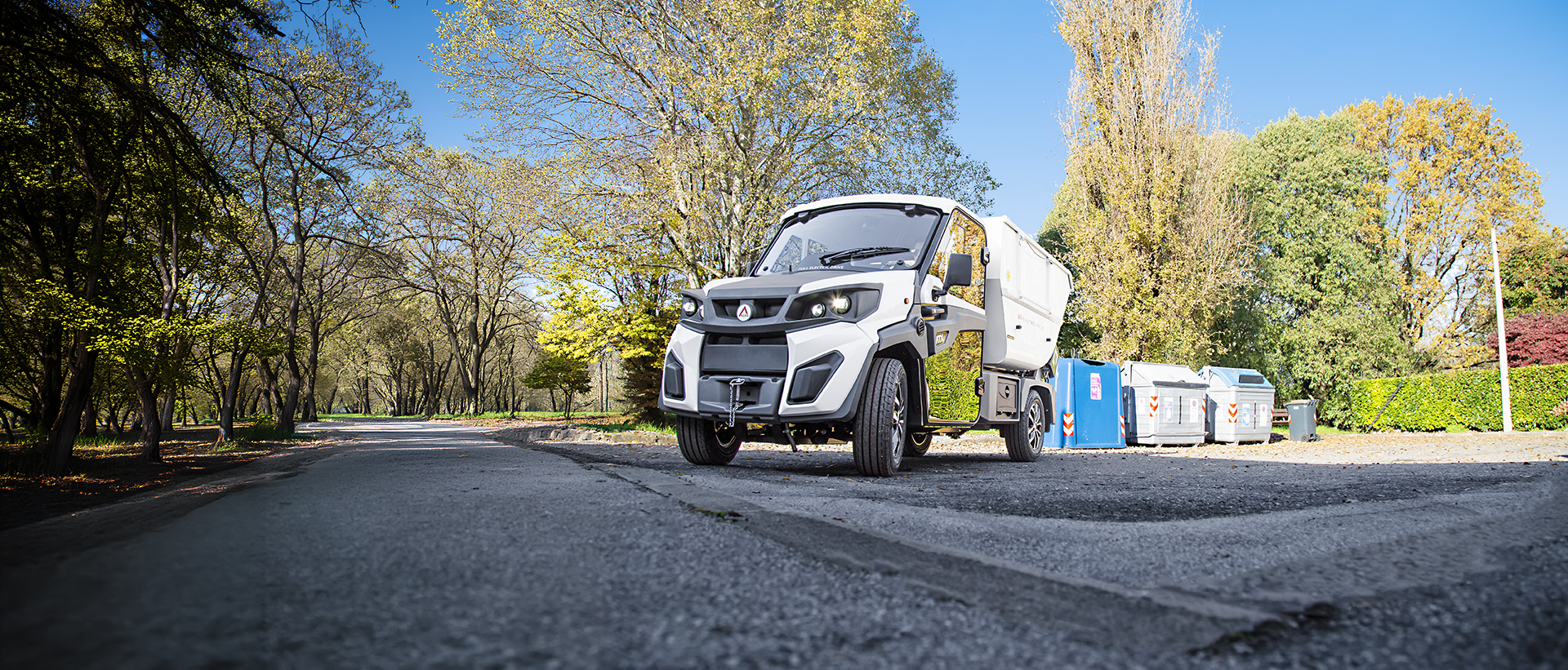

Electric Vehicles for Waste Collection

The greenest and quietest waste collection vehicles on the road

waste collection electric vehicles

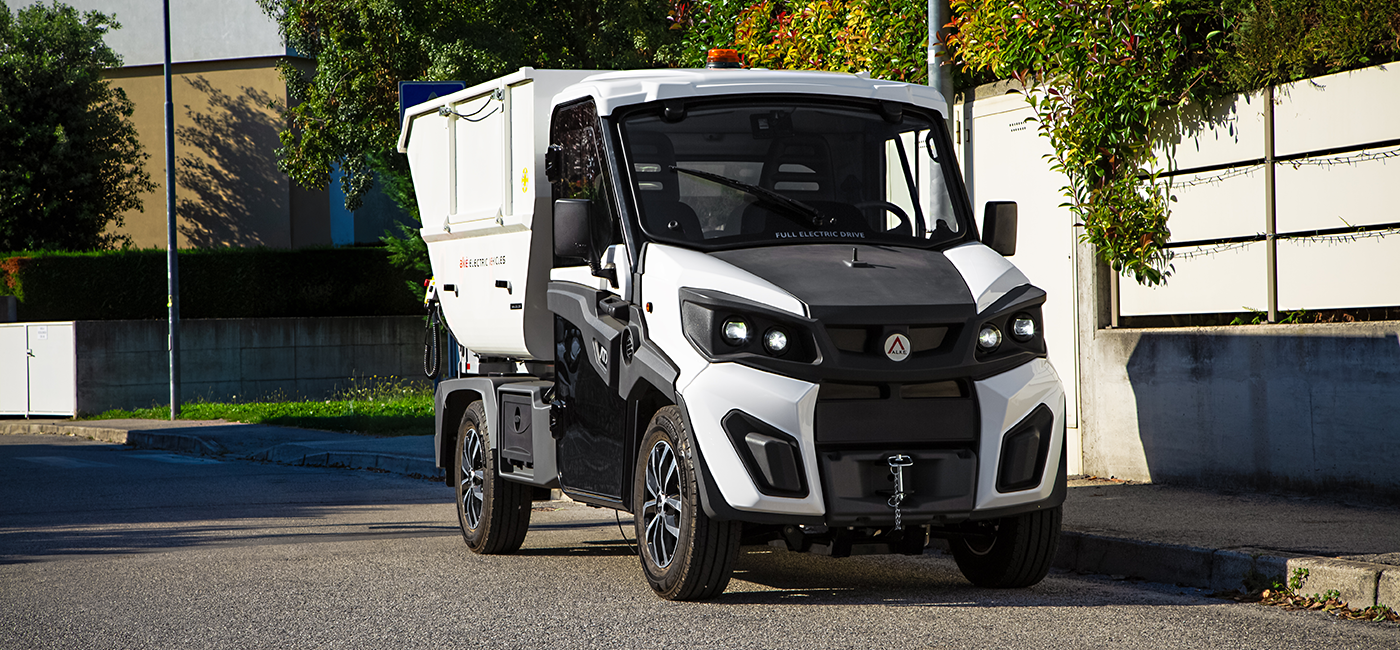

The ATX range of Alkè electric vehicles includes a special vehicle equipped with waste collection body, designed for use in cities and towns, sport centres, railway stations, airports, camping sites and tourist villages.




Advantages of Alke' electric waste collection vehicles:

  • Extremely compact: ideal for narrow streets, city centres and historic centres
  • Many accessories: combi version, bin lift, tarp system, orange flashing led
  • Extremely powerful: up to 650 kg of loading capacity
  • Road homologation
  • Electric traction: can operate indoor and silent



Electric vehicles for an environmentally friendly waste collection

Alke' waste collection vehicles are certainly a valid answer for those organizations that aim at eco-sustainability and at reducing air and noise pollution. In this period there is much talk of smart cities that can improve the quality of urban life through activities that mainly involve the fields of mobility, the environment and energy efficiency. This is why more and more urban realities are being activated in the implementation of separate waste collection systems also with the help of low environmental impact vehicles.

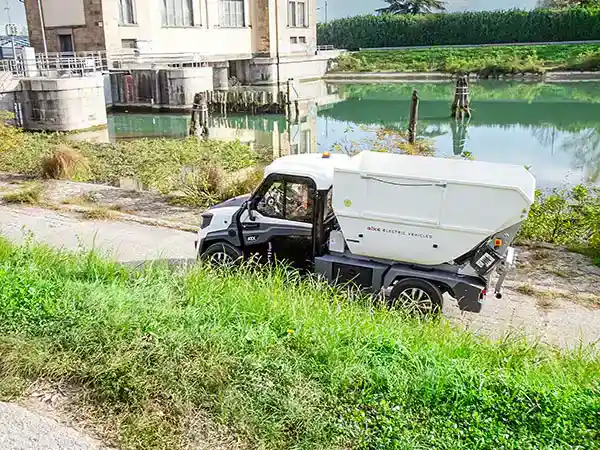

Alkè waste collection vehicle

waste transport electric vehicles alke
Alke municipal waste transport electric vehicle.
Loading capacity [liters] 2.800 - 2.200 - 1.700
Loading capacity [kg] 650

Waste body: this electric vehicle has a waste collection body of three different sizes: 2.8 m3, 2.2 m3 e 1.7 m3 (for COMBI versions) in a corrosion-resistant aluminum with a tipping angle of 90° that allows the waste to be dumped directly into the auto-compacting machines.

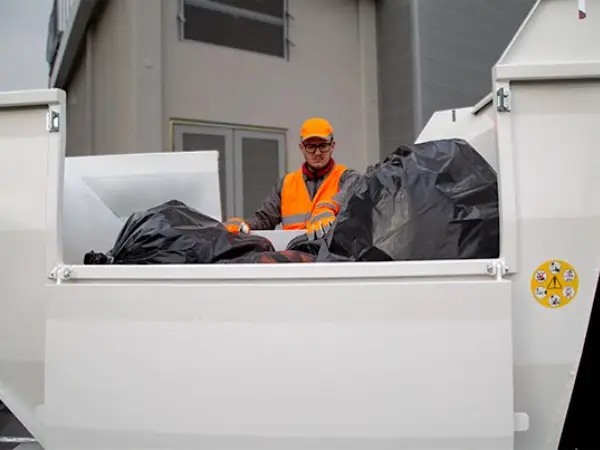

Side door waste collection body

side door waste collection vehicles
Side door on both sides.
Side door height [cm] 130
Side door on both sides Yes

Side door: thanks to the side door, loading baskets bags and garbage bags is much easier.

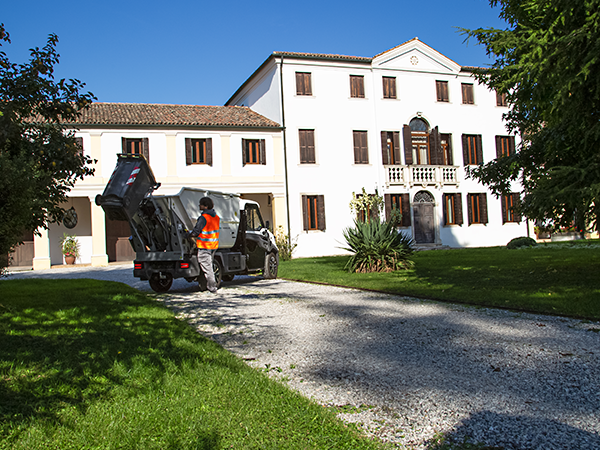

Bin lift for Alkè vehicles

bin lift waste collection
Electric vehicle with waste collection body and bin lift
Possibility to mount the bin lift: Yes
Bin capacity [liters] 120 - 240 -360

Optional bin lift: it is possible to equip the Alkè waste collection vehicle with a bin lifting system for containers of 120, 240 or 360 liters.



Broom holder

broom holder waste collection body

Toolbox and waste collection

Vehicles with toolbox and waste collection body - COMBI

Pressure washer and waste body

Waste collector vehicle with pressure washer - COMBI



Alke' electric waste collection vehicles: Main Characteristics

AC electric motor

AC motors provide very high performance while saving energy, therefore lower consumptions.

Max speed

44 km/h

Motor brake

Energy recovery during the braking ensures high safety standards and perfect descent maneuverability, as well as a lowering consumptions.

Maximum Autonomy: 150 km

The maximum range is indicative and evaluated over flat path with use in optimal conditions, ECO mode with proper style and energy saver guide, max speed of 30 km/h, non continuous use (batteries discharge in 5 hours).

Cost for a full charge: 1.50 - 2.00 euro



Length: 385 cm



Width: 138 cm

The small width allows to operate in restricted area.

COMBI Version

The waste collection body is available also in the COMBI version (1.7 m3) in combination with the toolbox or the pressure washer. Here more details su Toolbox and waste collection body and here all the information on Pressure washer and waste collection body

Max negotiable slope: 35%

ATX models, in their category, are probably the only electric vehicles able to maintain high performance even in presence of slopes and difficult land-types.

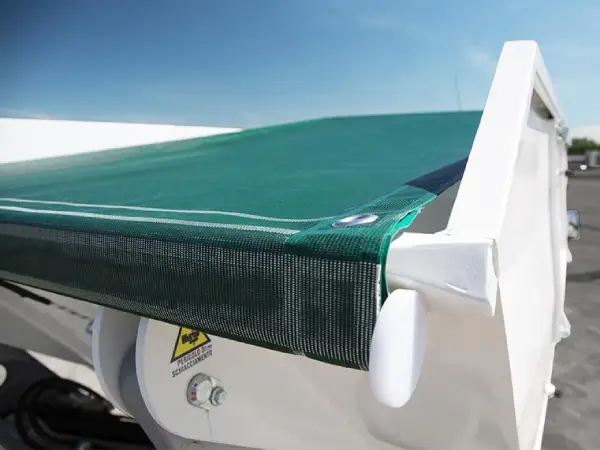

Tarp waste collection body

Tarp waste collection body

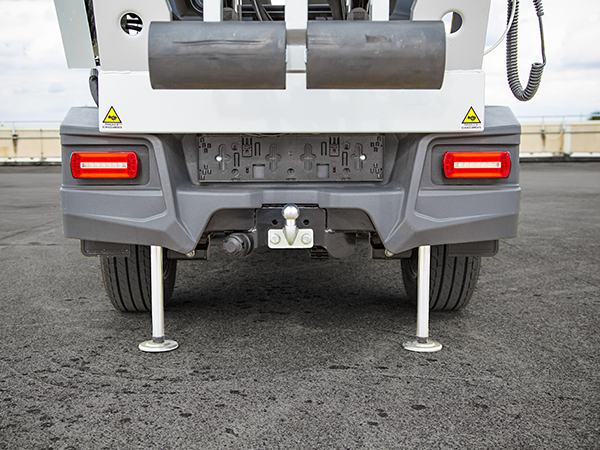

Stabilizers

Stabilizers

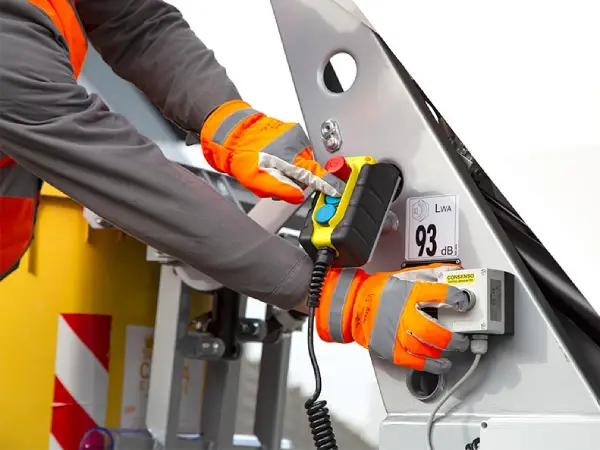

Bin lift button panel

Bin lift button panel

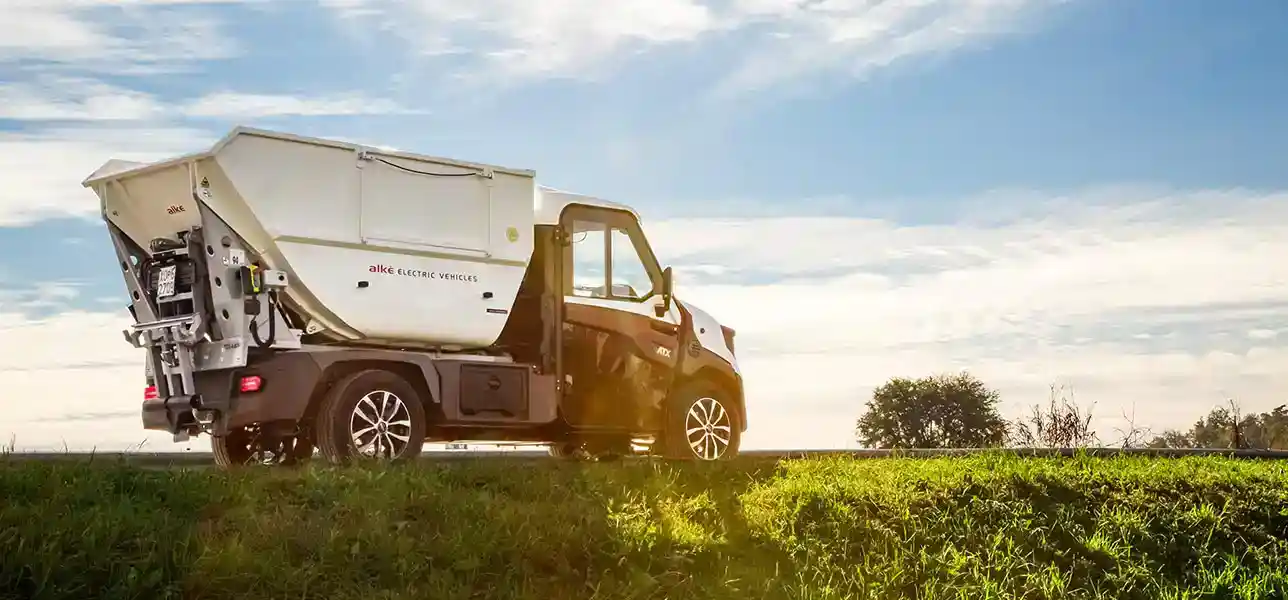

Waste collection body with bin lift system for a complete configuration

The vehicle is equipped with a dropping control system using automatic valves and double effect hydraulic cylinders and support feet with stabilization functions for tipping operations.
Tipping operations can be controlled on board or with a cable command from the outside.
It is possible to equip the Alkè waste collection vehicle with a bin lift system for containers of 120, 240 or 360 liters, also the bin lifting system works through an electro-hydraulic mechanism and is equipped, moreover, with a kinematism that keeps the bin always in a vertical position, emptying it automatically only when it reaches the loading mouth. A waste collection body tarp can be installed as an option.
The average amortization time of an ecological waste collection vehicle is about three years, due to the absence of fossil fuels. The waste collection body is also in the COMBI version (da 1.7 m3) in combination with the toolbox or the pressure washer.

icon features
  • advanced systems of security and stabilization
  • bin lift system
  • operations can be controlled on board
  • available with COMBI version with toolbox and pressure washer

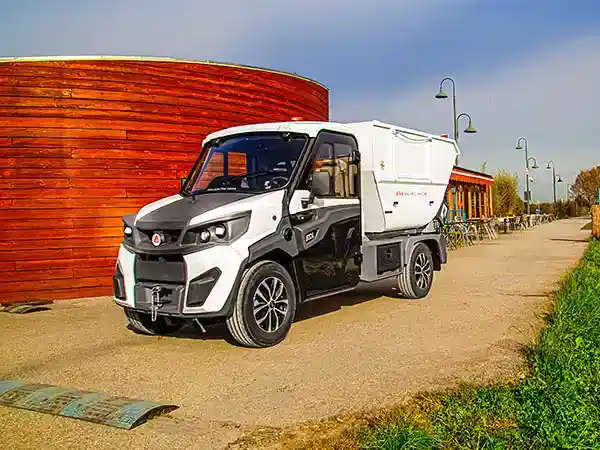

MSW collecting vehicle

waste collection electric vehicles
Municipal solid waste collection vehicles with bin lift.
Energy recovery during the braking Yes
Zero Emission Vehicle: Yes

Regeneration braking: this vehicle has the regenerative brake. For waste collection vehicles, energy recovery is extremely important for stop-and-go movements and increases the range up to 30%. For this reason, these vehicles are chosen by the municipalities.

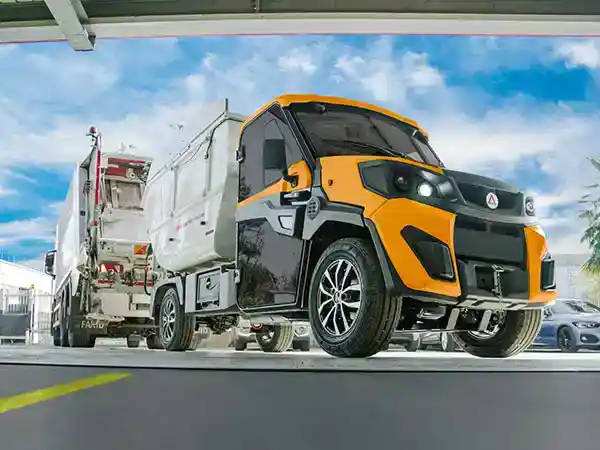

Waste transport vehicles

dumping system msw waste collection body
Alkè waste transport vehicle: dumping into a bin
Dumping height [mm] 1450
Suitable to unload into the compactor: Yes

Ideal for campings and municipalities: thanks to their quiet, such vehicles are used, very often, in railways stations, parks and hospitals to load the garbage and bring it to the compactor.

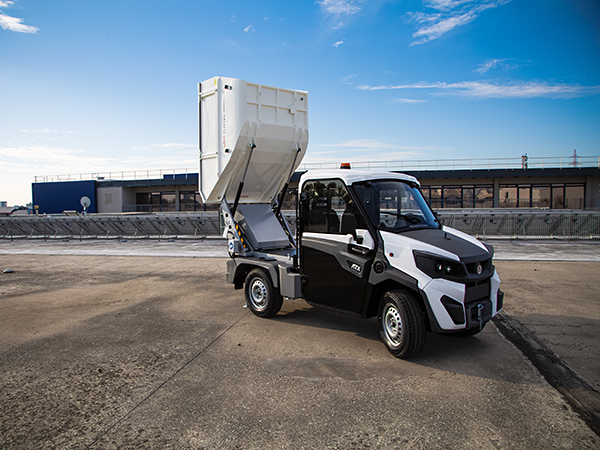

Tipping angle [degrees]: 90°

tipping angle waste collection vehicles Alke'
Alkè waste collection vehicle with body lifted up.
Height raised body [mm] 3650
Tipping angle [degrees] 90

Cab controls: the waste collection body can be controlled directly on board.



Waste collection electric utility vehicle Alke'



The recommended model for this configuration

The ATX for waste collection is an electric vehicle used where it is necessary to collect waste in a continuous and easy way, without creating noise (zero noise) or polluting (electric motor). The model recommended by Alke' for the configuration with waste collection body is the ATX 340E/ED/H for the usual use but it is also compatible with the ATX 330E/ED/H model. You can check the technical characteristics of the waste collection electric vehicle.
