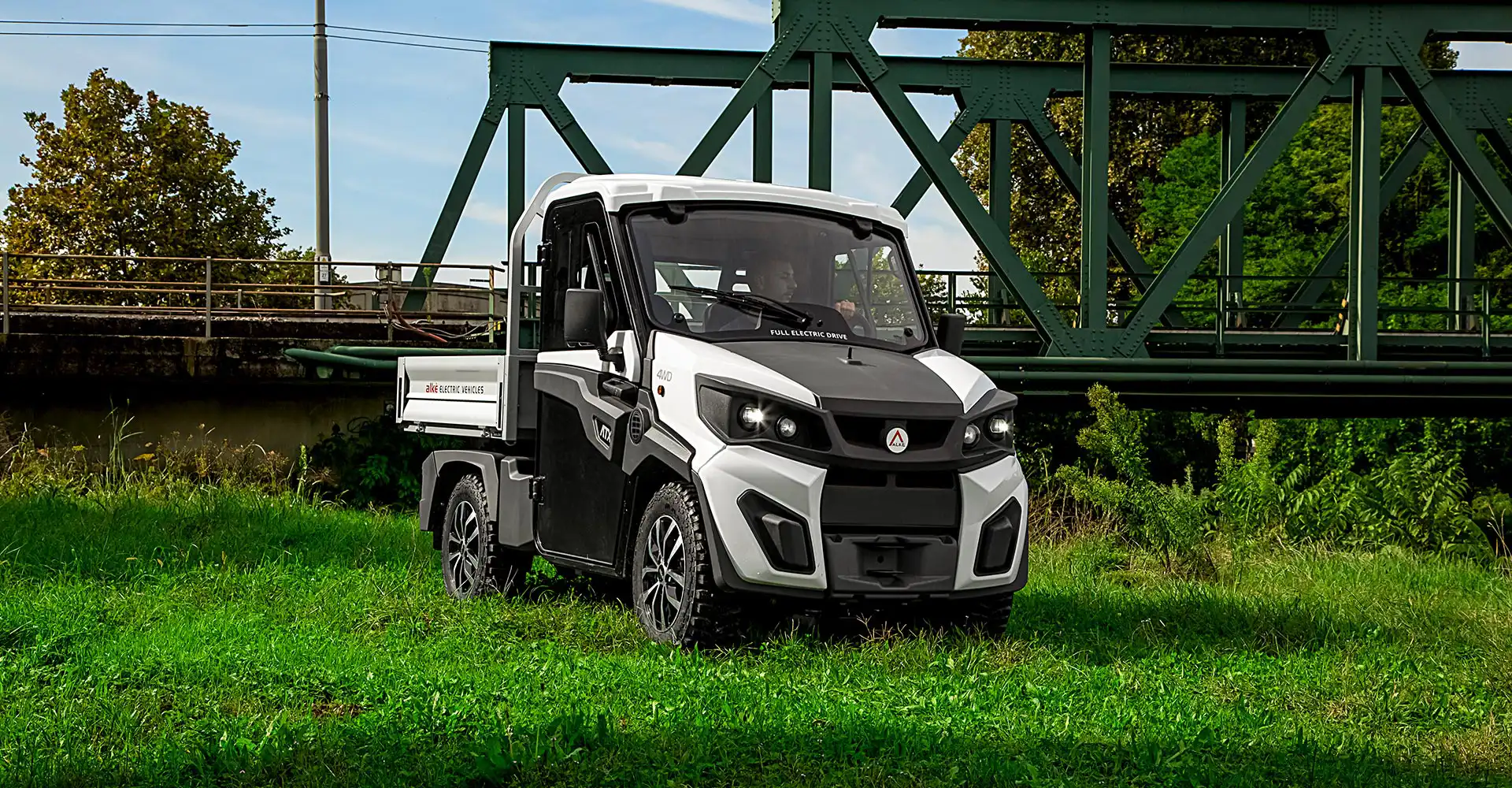

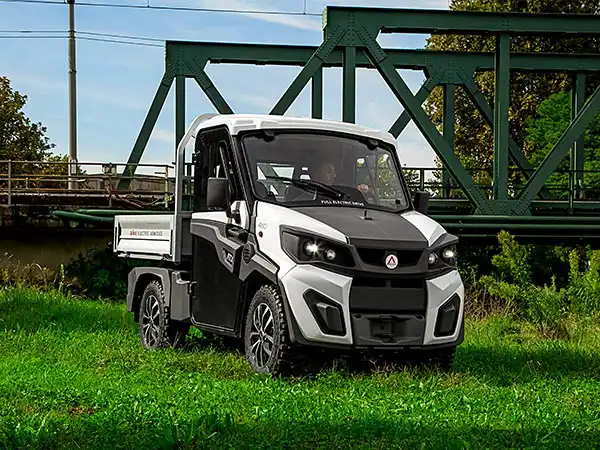

All-terrain 4WD electric vehicle dual motor ATX4
The full-electric off-road vehicle
The 4WD traction, available on 480 models, extends the range of use to off-road areas or very critical terrain, which was previously unthinkable. The ATX4 4WD models are among the best performers in their category, being able to handle up to 40% gradient.
Why should you choose Alkè ATX4 4WD vehicles?
- Maximum negotiable gradient: 40%
- N1 approved for road use
- Extremely compact vehicle
- Maximum load capacity (chassis): 1450 kg
The main features of ATX4 4WD electric vehicles:
| Two electric motors: one per axle |
| MacPherson-type independent front suspension that adapts to rough terrain, making for a smoother ride |
| Rear suspension with springs, shock absorbers and coil stabiliser bar |
| Off-road tyres with grip suitable for slippery or crumbly surfaces |

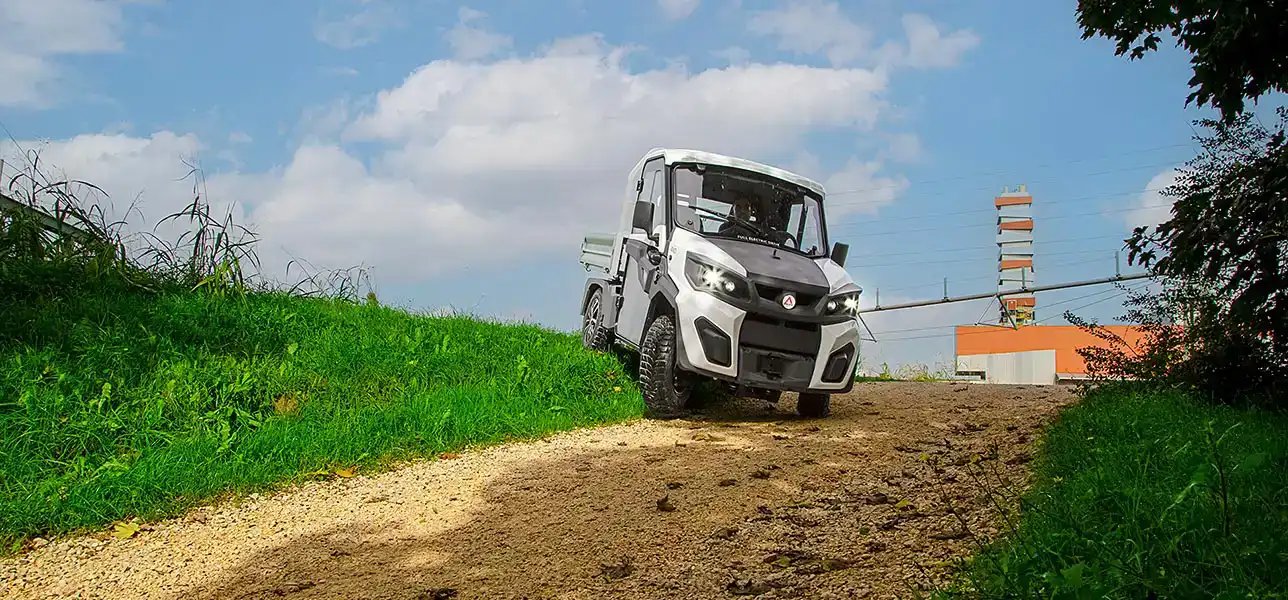

Alkè ATX4 electric off-road vehicles
The ATX4 range stands out for its new powertrain and completely redesigned chassis, optimised to guarantee superior performance compared to previous generations. The 4WD (480) models can tackle critical terrain and challenging off-road conditions, offering superior strength and grip even on slopes of up to 40%. Drivability has been improved thanks to the redesign of the steering, brakes and suspension, which guarantee comfort and control even on rough surfaces or off-road trails. Alkè ATX4 480 are the only vehicles in their category on the market to have four-wheel drive.
ATX4 480 electric off-road vehicles - Equipment and configurations
ATX4 480 electric off-road vehicles are designed to offer maximum flexibility thanks to a wide range of customisable equipment and configurations, designed to meet the needs of various professional sectors. The base is a sturdy chassis with 4WD, ideal for operating on difficult terrain, uneven surfaces and steep slopes. The ATX4 480 can be configured with a tipper body, flat cargo bed, closed van body or special fittings for applications such as maintenance, logistics, construction sites, agriculture and waste collection. Various cab solutions (2 or 4 seats), batteries with different levels of autonomy and numerous accessories are available, including tow hooks, winches and reinforced protections. This modularity allows you to create a tailor-made electric vehicle that combines high performance, reliability and environmental sustainability even in the most demanding working conditions.

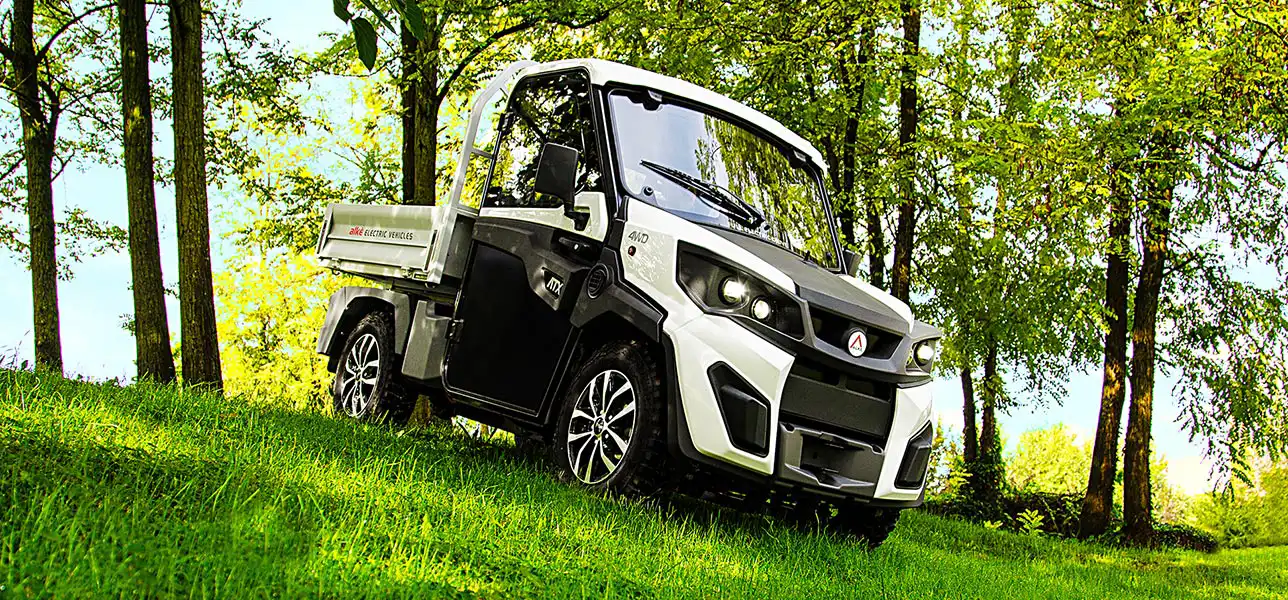

ATX4 4WD vehicles - Technical specifications and operation
The traction system is based on a rear powertrain with a rigid axle combined with a front powertrain with independent axle shafts, a technical solution that delivers high performance in terms of both traction and vehicle control. The configuration includes two electric motors, one for each axle, managed by two dedicated inverters: a master inverter, associated with the rear powertrain, and a slave inverter, connected to the front powertrain. The all-wheel drive is permanent, therefore always active and cannot be disengaged, ensuring continuous torque, maximum grip and operational safety even on uneven, slippery or steeply sloping surfaces. Another distinctive feature is the intelligent management of the front powertrain, which automatically reduces the rotation speed during steering manoeuvres, significantly improving driveability, manoeuvring precision and driving comfort, especially off-road or in confined spaces. This architecture combines robustness, reliability and advanced dynamic control, making the vehicle particularly effective in the most demanding professional applications.
