The AR version has a waste collection body built with anti-corrosion aluminium and may be integrated with an optional automatic bin lifting system for 120 and 240 litre bins. The waste body has a 2 cubic metres capacity (410 kg of nominal capacity) with a tipping angle of 90° that allows the waste to be dumped directly into the auto-compacting machines.

Specs	ATX 200E AR		Notes
Engine	Electric with separate excitation		SEM excitation on electric vehicles allows greater performance and energy saving and therefore lower consumption.
Maximum speed	30 km/h 12  km/h (reduced mode)		The reduced mode allows to make the most of the available torque and greater driving control.
Engine brake	Yes, with energy recovery		The engine brake with energy recovery ensures high safety standards and perfect descent manoeuvrability, as well as lowering consumption.
Autonomy	70 km
Complete charging	1.5 - 2 euro
Load volume	2 m³
Loading capacity	400 Kg		The high load capacity is guaranteed by a very strong chassis.
Dumping system	90° Electrohydraulic		Tipping operations can be controlled on board or with a cable command from outside the machine.
Dumping height	1270 mm		Standard height
Length	3530 mm
Width	1270 mm		The small width allows to operate in restricted areas.
Power in standard conditions	6 kW		Available power and torque are really for professional and intensive use.
Max. power separate excitation	17,5 kW		Max power to face slopes and towing jobs. Best in category.
Negotiable slope	30%		The ATX are probably the only electric vehicles in their category to keep up high performance even in the presence of slopes and difficult land-types.

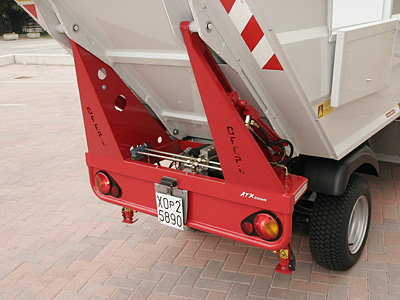

The vehicle is equipped with a dropping control system using automatic valves and double effect hydraulic cylinders and support feet with stabilization functions for tipping operations. Tipping operations can be controlled on board or with a cable command from outside the machine.

A waste collection body tarp may be installed as an option. Electric ATX 200E AR vehicles are used where the waste collection activity has to be done in a continuous and easy way, without disturbing (noiseless) or making pollution (electric engine).
You can check the technical characteristics of the electric vehicle for waste collecting.
