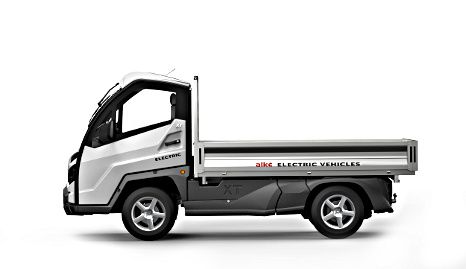

Alke' XT320EL

Alkè XT320EL is an high quality electric vehicle with great performance and ideal for professional usage.

Electric vehicle Alkè XT320EL


Here below you find in detail characteristics for this advanced electric car powered by a 12kW AC electric motor and with a 220 cm long cargo area.

Alkè XT320EL Specs		Notes

Alkè XT320EL Motor / Performance
Type	AC electric motor	AC motors allow greater performance, they are extremely quiet and require less maintenance than DC motors.
Power in standard conditions	12 kW / 72 V	Available power and torque are really for professional and intensive use.
Max. power	24 kW	Max power to face slopes and towing jobs. Best in category.
Torque	230 Nm	Motor torque equal, to give an example, to the torque supplied by a Common Rail 1.600cc TDI engine
Maximum speed	60 km/h 40 km/h (reduced mode)	The mechanical reduced gear allows to make the most of the available torque, greater negotiable slopes and towing power.
Approved towing capacity	1500Kg	Towing capacity approved for road circulation at EU level (trailers used must have repulsion brakes).
Towing capacity	3000Kg	Effective maximum towing capacity (not for public road usage inside EU, trailers must have repulsion brakes)
Autonomy with battery completely charged	100 km 200 km with 26kWh battery pack	Autonomy in standard conditions is an entire working day (standard condition = 20°C, flat asphalted ground). Partial charging is possible, there is no “memory effect”.
Controller type and max output power	CURTIS 360 A	Top quality controller monitored by the 7’’ on board display
Setting vehicle's performances	4 settings controlled from dashboard (eco, sport, mountain, towing)	Allows setting of vehicle performance directly from the dashboard 4 position specific selector.
Remote diagnosis system	Yes, GPRS system (needs specific Alkè remote service pack activated)	Allows remote diagnosis using a GPRS data connection to check status of electronic devices on the vehicle

Alkè XT320EL Battery pack
Type of battery	Pure lead technology	Pure Lead batteries used on Alke' XT 320E are maintenance free military grade batteries they provide great results even at low temperatures (at –20°C you lose 10% performance when standard lead acid lose at least 50%). Thanks to their sealed construction they are certified non-spillable by US DOT and IATA for unrestricted and safe shipping. These batteries are explosion proof and they employ a rugged military construction with same design used in armored vehicles to offer superior vibration resistance and durability.
Autonomy with battery completely charged	100 km 200 km with 26kWh battery pack	Autonomy in standard conditions is an entire working day (standard condition = 20°C, flat asphalted ground). Partial charging is possible, there is no “memory effect”.
Battery capacity	13kWh (standard battery pack) or 26kWh (optional)
Battery-charger on board the vehicle	Yes	With on-board charger the operator can connect anytime and anywhere.
Type of battery-charger	High frequency	High frequency charger enables better continuous charging, increases battery life.
Estimated battery charge time	7 hours with 13kWh battery pack 10 hours with 26kWh battery pack	13kWh battery pack needs 220V 16A socket, 26kWh battery pack needs 220V 32A socket (in case of 16A socket usage the charging time for 26kWh battery pack it is 14 hours instead of 10) Type
Type of battery-charger	High frequency battery charger with temperature sensor on batteries	This type of charger enables best charging and increases battery life.
Number of batteries	13kWh configuration: 6x 12V pure lead batteries + 1x 12V service battery 26kWh configuration: 12x 12V pure lead batteries + 1x 12V service battery
Removable battery pack	Yes	Removable battery set enables non stop working through the day and night using 1 or more auxiliary battery set. You can switch between different sets with the support of an hand pallet truck (400 mm lift)

Alkè XT320EL Transmission
Type	Electronic speed variation + mechanical reduced gear	Mechanical reduced gear enable higher torque and power.
Driving	2WD (rear driving)
Negotiable slope	30% standard gear / 46% reduced gear	Alkè XT320E electric vehicles provide great performance even in presence of slopes and difficult terrains.
Regenerative brake	Yes, with energy recovery	Regenerative brake ensures a lower energy consumption as well as high safety standards and perfect descent manoeuvrability. When the accelerator is released, braking starts and batteries recharge.
Rear differential unit	With removable semi-axle and differential lock	The unit with removable semi-axle doubles the dynamic load of the vehicle.

Alkè XT320EL Brakes
Front hydraulic discs	Yes
Rear hydraulic drums	Yes
Mechanical servo brakes	Yes	Mechanical servo brakes make operation easier and more sensitive

Alkè XT320EL Suspensions
Front	Double quadrilateral	Double quadrilateral suspension allows higher ride comfort and driving precision even in presence of difficult grounds.
Rear	De-Dion bridge + Stabilising bar	De-Dion axle permits softer ride, better axle articulation, better traction on all land-types.
specs part two

If you have questions about the price and the technical specifications of the electric vehicles Alkè XT 320EL, fill out the following form and you will receive all the additional information:

Specs	Alkè XT 320EL	Notes

Alkè XT320EL Chassis and body
Chassis	Steel chassis with anticorrosion treatment and powder coating finish	XT chassis have anticorrosion treatment by cataphoresis and powder coating. They are built to support hard duty operations.
Bodywork	Reinforced ABS	Standard colour bodies are painted at raw material level so in case of scratches and damages you don’t see components below.
Front and rear towing hook	Yes. Rear tow hook with sphere attachment approved for road circulation (1.500 kg)	Heavy duty front and rear hooks are standard. Rear tow hook approved for road circulation.

Alkè XT320EL Electronics and lighting system
Heating	Electric with 3 speeds (standard) / Webasto heating system (optional)	Electric heating with electronic thermostat (1kW heating power). Webasto system (diesel) 2kW power.
Air conditioning	Optional	Air conditioning system with electronic thermostat.
12V socket on the vehicle	Yes	Enables to plug cell phones, radio, PC and other electric devices (15A /180W max).
Display	7’’ LCD with 4 direction arrows, “home” and “escape” keys and 40 functions/alerts monitored	The 7’’ LCD display provides control and diagnosis functions for the vehicle. When driving main screen indicates with proper icons alerts for: head lights, tail lights, indicators, emergency lights, rear fog lights, Webasto fuel shortage, doors open, rotating lamp, brake oil shortage, steering failure, lifted cargo bed, hand brake, electric motor overheating, suspension failure, rear differential lock, central differential lock*, standard/reduced gear, forward/backward/neutral gear. Specific digital gauges indicate: motor temperature, performance setting, external temperature, time, data, motor hourmeter, odometer, tachometer, trip meter (total and partial), suspension pressure, battery indicator, eco-meter (indicator for energy consumed / regenerated).
Lights	Head lights, tail lights, stop lights, indicators, emergency lights, reverse and rear fog lights, rotating light (optional)	LED technology applied on Daytime Running Lamps (DRL).
Horn / Reverse buzzer	Yes
Head lights and tail lights	Yes	Visibility for all hours of the day and night.
Horn	Yes
Rear 13 pin connector	Yes

Dimensions Alkè XT320EL
Length (chassis version)	4110 mm
Length (with cargo bed)	4350 mm
Width	1425 mm	1520 mm with closed side mirrors, 1700 mm with fully open side mirrors.
Height	2050 mm (with Road tyres)
Wheel base	2300 mm
Ground clearance	255 mm centre /185 mm rear differential
Cargo bed dimensions	2700 x 1400 mm	Height loading platform from the floor 815 mm, height sides 350 mm.
Loading capacity	1.000 Kg (640Kg with 26kWh battery pack)
Empty weight with batteries	1010 kg	Chassis version values.

Alkè XT320EL Steering
Electric power steering	Yes
Minimum steering radius (internal)	3605 mm

Alkè XT320EL Tyres
Front and Rear	185/75 R14 Road tyres (std) 205/70 R15 Multi-terrain tyres (optional)

Alkè XT320EL Loading bed
Loading capacity	530 Kg	The high load capacity is guaranteed by a very strong chassis.
Dimensions (L, W, H)	180 x 120 x 26 cm	Standard measurements for europallet, drop sides that ease loading from the sides.
3 aluminium drop sides	Yes	Access is made easier to the entire load bed from all sides also in the presence of the body tarp. The drop sides are in anti-corrosion tubular aluminium.
Load-cab area steel protection	Yes	Protects the driver if the load falls forwards. Roll-bar function.
Bed tipping	Manual, electro-hydraulic optional	The optional electro-hydraulic tipping device can be controlled from the control board in the cab.

If you have more questions about the price and the technical specifications of Alkè XT 320EL, fill out the following form and you will receive all the additional information:

The technical specifications, design and performance may undergo modifications without forewarning.
